Intelligent Home Heating Energy-saving Thermostat Switch
- Free worldwide shipping
- In stock, ready to ship
Product information:
Load current: 3A (water heating, gas boiler), 16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±1°C
Temperature group: Range: 5-35°C
Constant greenhouse: Range: 5-99°C
Temperature display: Range: 5 to 99
Ambient temperature: 0 to 45°C
Ambient humidity: 5~95% RH (non-condensing)
Storage temperature: -10~45°C
Power consumption: <1. 5W
Timing error: <1%
Shell material: ABS PC (fireproof)
Installation box: 86*86mm square box or European style 60mm round box
Wire terminal: 2 x 1.5 mm2 or 1 x 2.5 mm2 wire
Protection level: IP20
Keys: Capacitive touch keys
Protection function: over temperature protection
Electrical life: 100,000 times

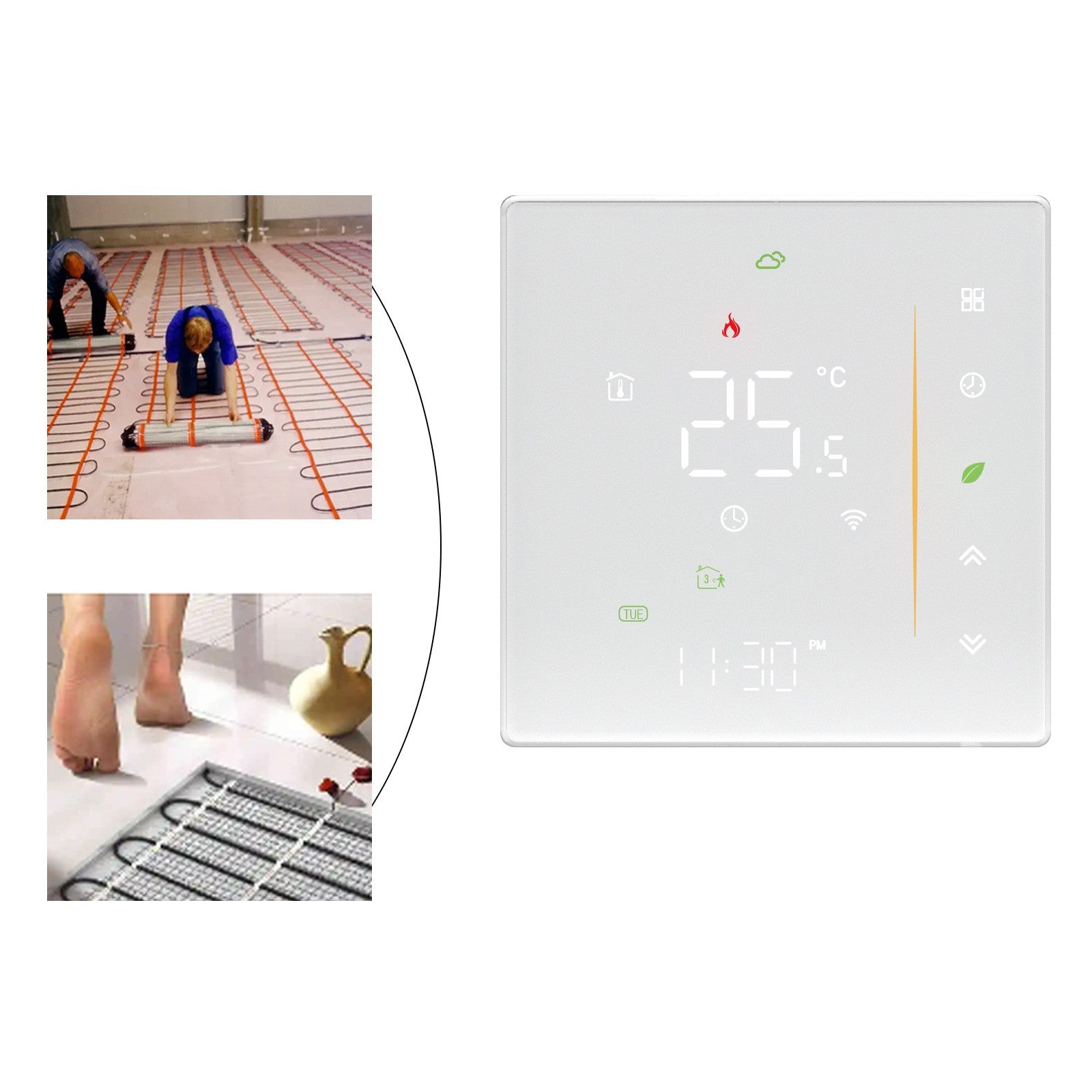

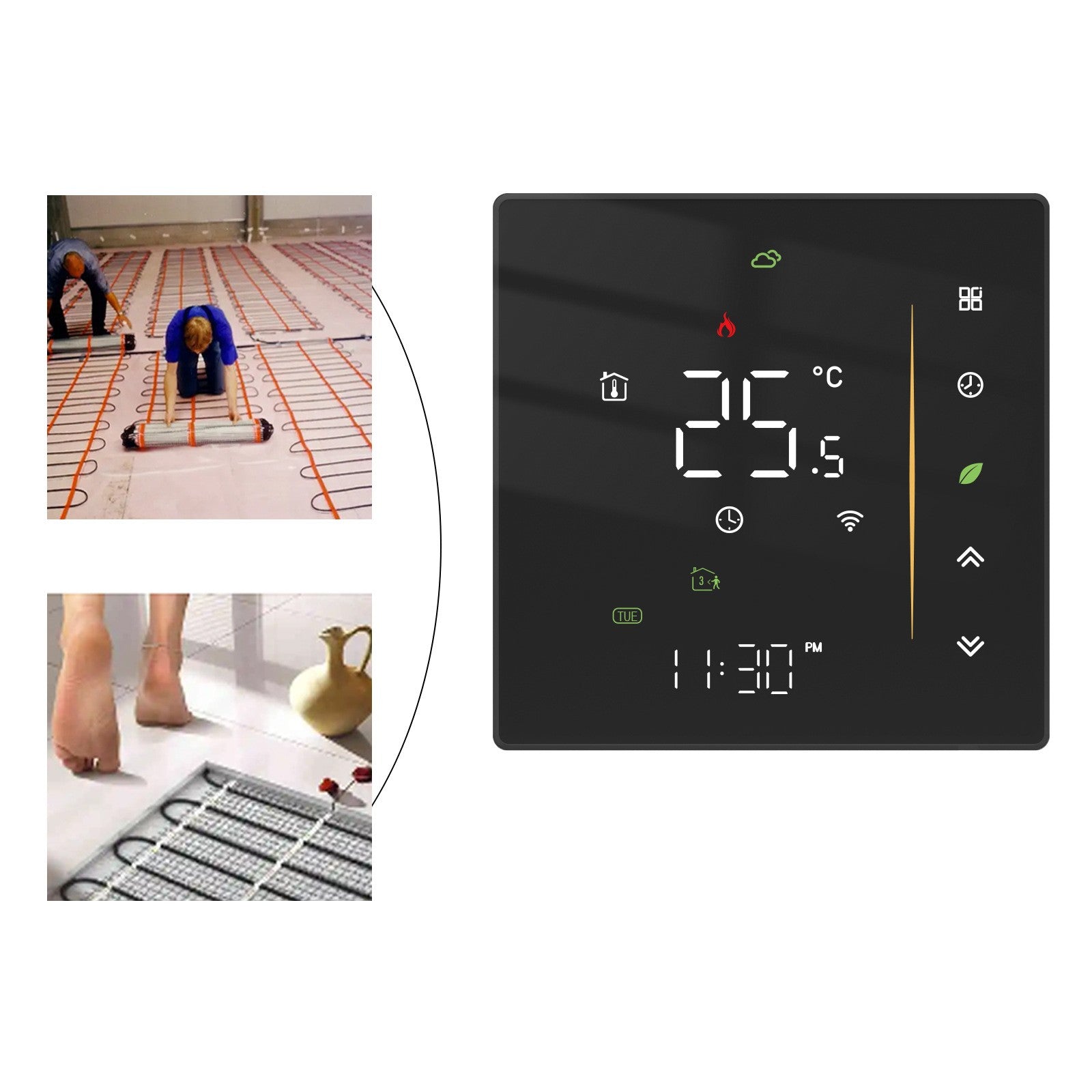

Application: floor heating pad controller
Insulated paper: No insulated paper
Case material: flame retardant ABS
Connection mode: zero fire connection
Mechanical life: 100,000 times
Protection level :IP20
Contact material: copper inlaid silver
Packing list:
1* thermostat switch
